High-Resolution Video Microscopy and LIBS Spectroscopy
Combining Tribology and Lubrication Expertise with advanced optics and diagnostic technologies
Redefining contaminant identification and failure analysis
CUTTING-EDGE INSTRUMENTS FOR DEEPER INSIGHT

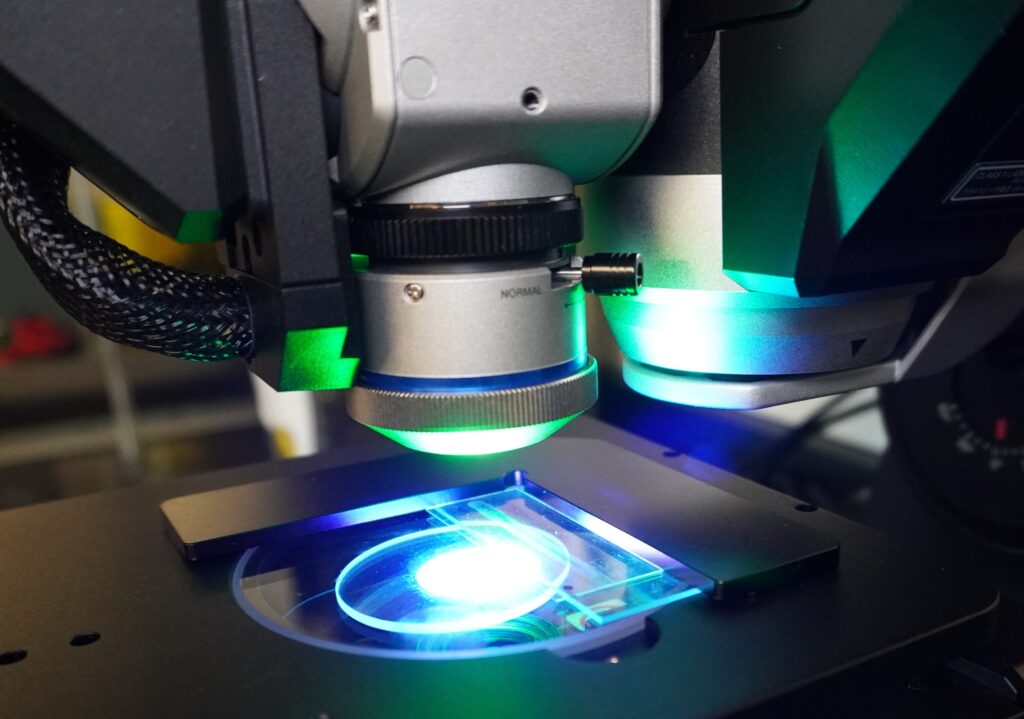

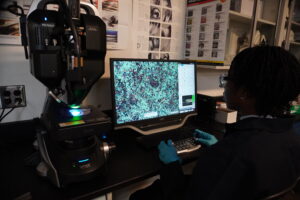

High Resolution Digital Microscope
This system offers 4K CMOS imaging with extended depth of field and high magnification up to 2000x, enabling detailed observation of wear patterns and surfaces. It allows viewing objects at angles up to 90 degrees and features polarized lighting, with adjustable illumination using ring and coaxial light sources.
Analyses Utilized by MRG Labs:

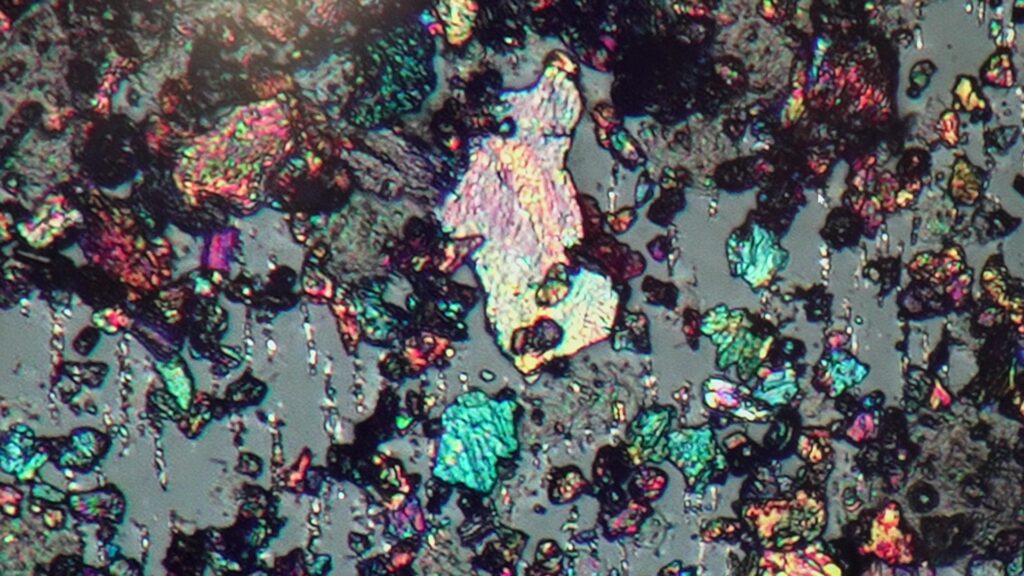

- Analytical Ferrography
- Laser-Induced Breakdown Spectroscopy
- Filter Testing
- Root Cause Failure Analysis
Laser-Induced Breakdown Spectroscopy (LIBS)
Laser-Induced Breakdown Spectroscopy is an atomic emission spectroscopy technique that generates elemental data for a sample by directing a laser at the target to create a plasma containing the target’s elemental constituents, then analyzing the emitted light (generated from the plasma) to detect the elements present in the sample.
No sample prep or vacuum required to perform the analysis. It is suitable for metal or metal alloys and surface composition. Can be performed directly on prepared membrane patches or Ferrography glass slides.
OUR CAPABILITIES

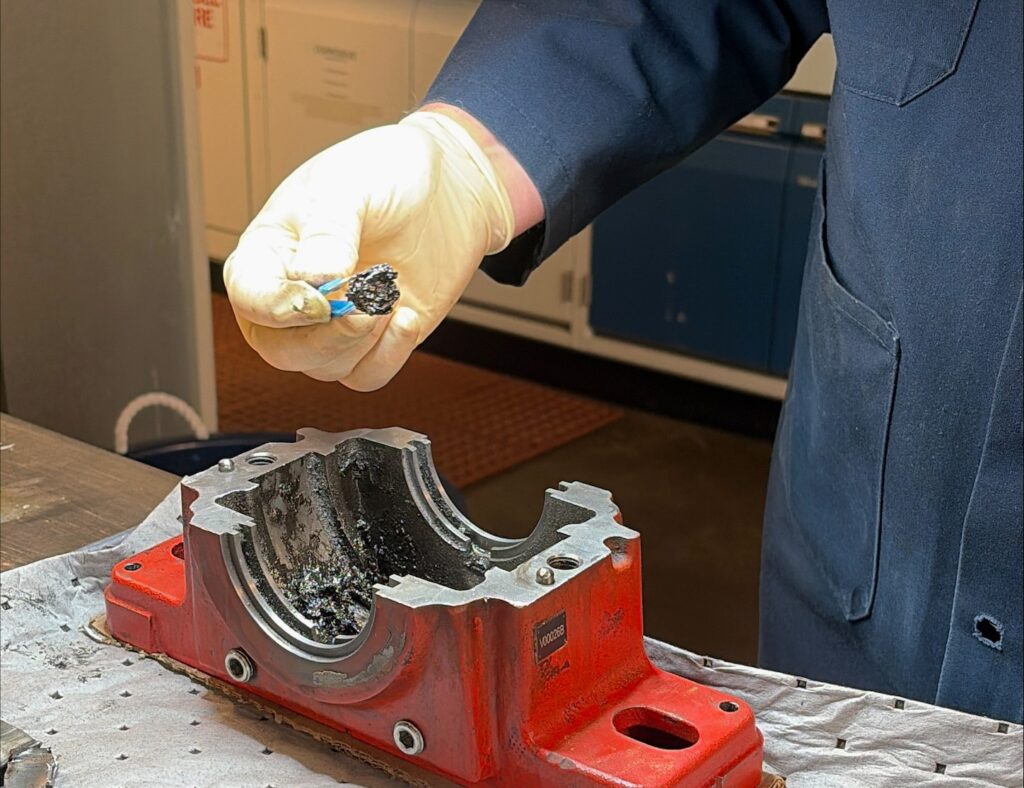

Parts Surface Analysis

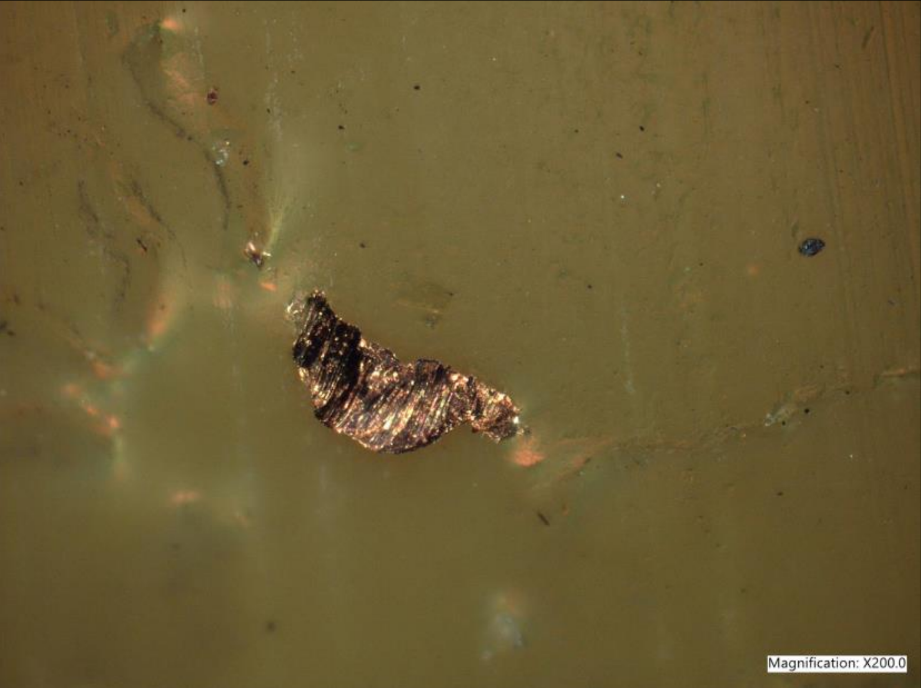

Investigate and identify failure mechanisms with optical imagery to capture minute details, optimized lighting settings to enhance surface characteristics, and measurement tools for quantifiable data.
Filter Particulate and Contamination Analysis

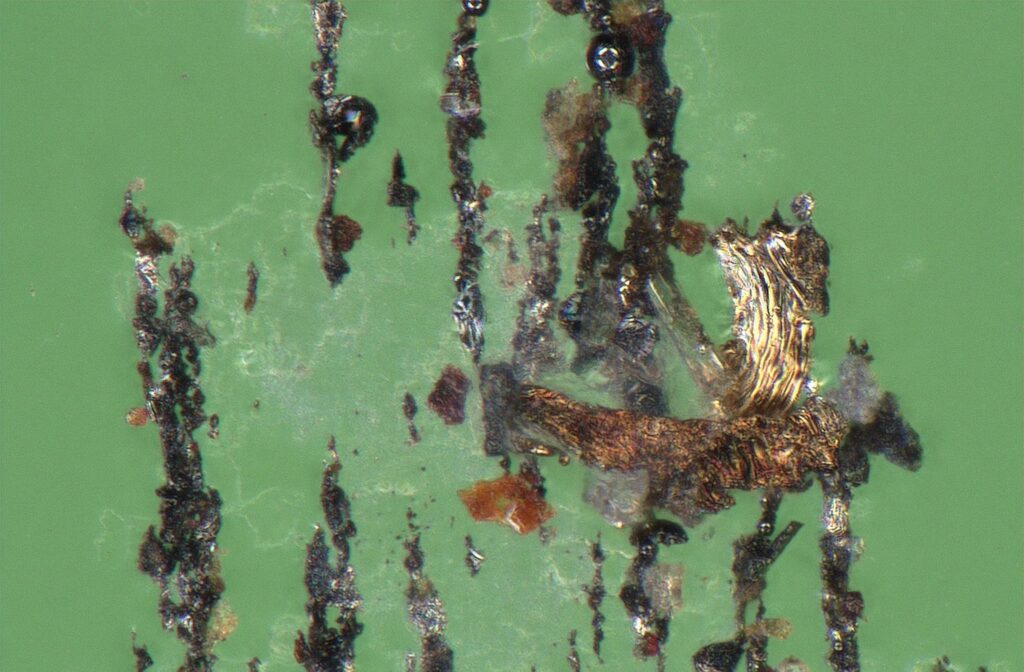

Isolate unknown particles and determine source material for corrective actions. For Filter Analysis, filter construction can be magnified and evaluated for damage. Deposition of particulate can be evaluated at the surface, along with other regions of the filter by disassembly and magnification. Damaged filter media and unusual or difficult to observe materials can be identified. For varnish potential Membrane Patch Colorimetry (MPC) Testing, observe the nature of varnish on the patch to characterize depositions of varying color in addition to just monitoring the MPC Delta E values.

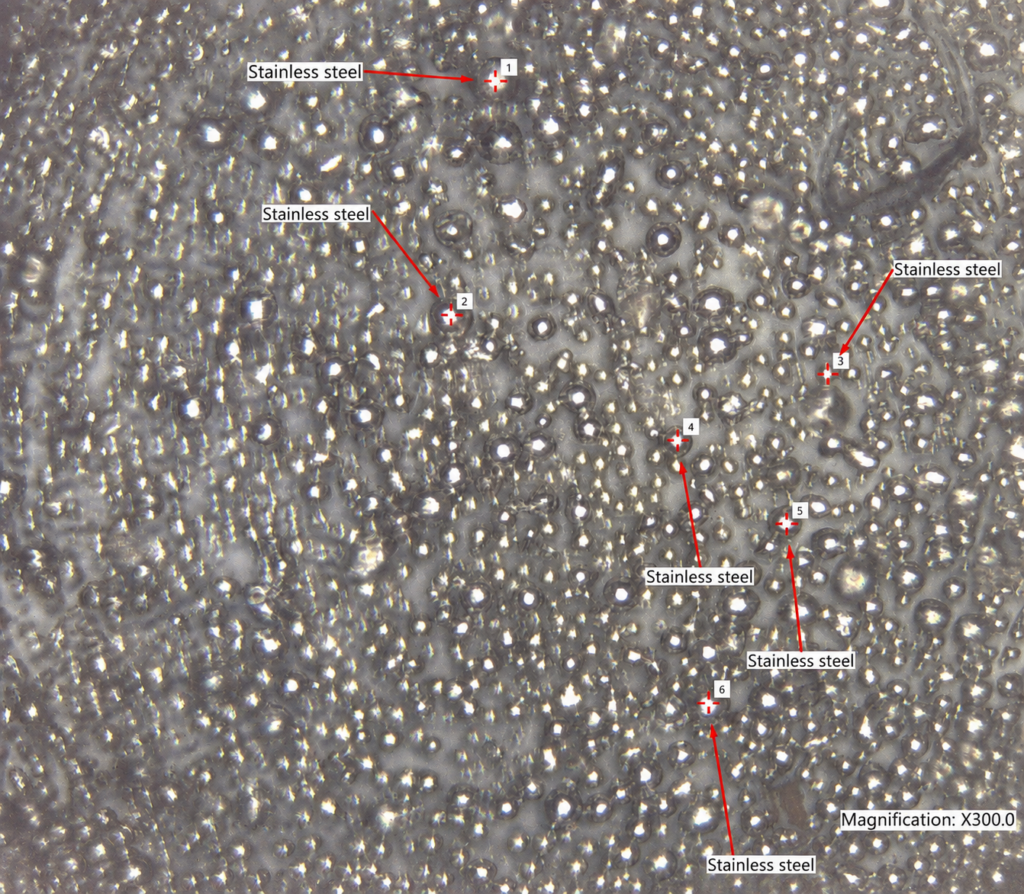

Material Verification

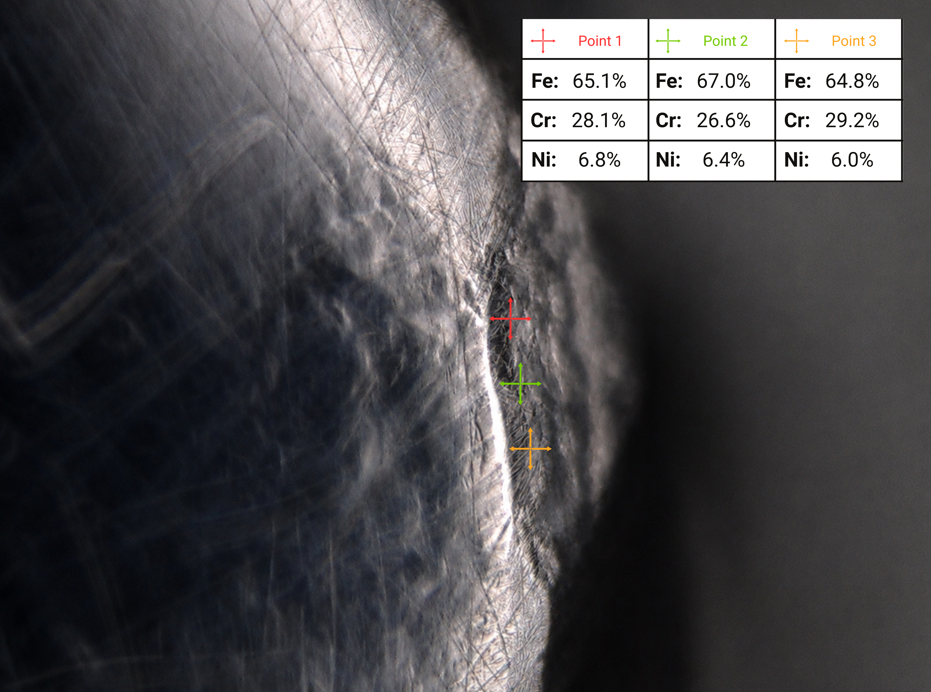

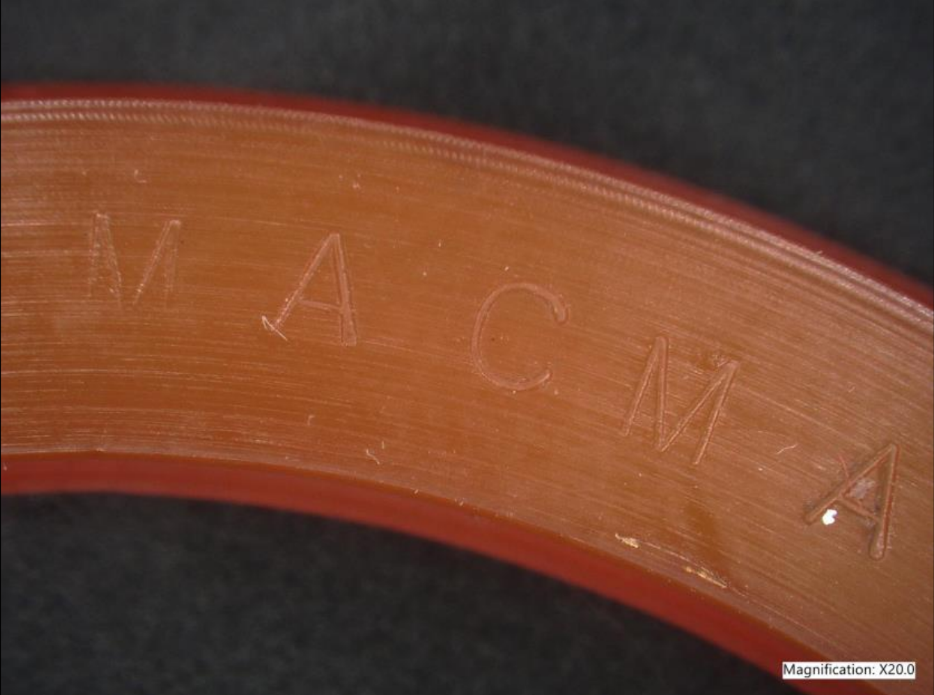

Confirm material composition and see the breakdown of metal or metal alloy in ratio percent composition. Coding and surface artifacts can be differentiated.
Prompt Turnaround. World-Leading Expertise. Clear and Actionable Reports.
